Open WebUI Performance Checklist: Engineering Guide

Open WebUI is an extensible self-hosted AI interface with local and remote model support, RAG, multiple vector backends, and production deployment options. This checklist focuses on how to measure and engineer performance for Open WebUI deployments, mapping common LLM-webui interactions to measurable goals and practical controls. (Primary sources: the Open WebUI repository and the v0.10.2 release notes.)

Performance work begins by designing measurements that reflect real users and infrastructure. Start with clear service-level goals expressed as latency quantiles, throughput capacity, and resource limits; then collect representative workloads, run profiling and tracing to locate bottlenecks, add caching and the right I/O architecture, and lock checks into CI to avoid regressions. This article gives concrete checkpoints, tooling suggestions, and patterns to avoid when benchmarking Open WebUI.

Quick orientation and scope

Open WebUI is an open-source, feature-rich self-hosted AI platform that supports local inference runners (e.g., Ollama) and OpenAI-compatible providers, includes RAG workflows, and supports multiple vector databases and storage backends. These capabilities are documented in the project repository and in the v0.10.2 release notes; use those as your canonical reference when mapping features to performance risks Open WebUI repository and v0.10.2 release notes.

Note on inferences: where I describe runtime architecture (workers, Redis session backing, WebSocket concurrency), those are explicit in README claims (for example, Redis-backed session management and OpenTelemetry support are documented). Any higher-level architecture diagrams presented below are inferred from the README and repository structure and are explicitly labelled as such.

Measurement design: what to capture and why

Goals:

• Tie measurements to user-facing outcomes: UI interactivity, chat response time, upload latency, and background processing completion.
• Capture server-side resource signals for root-cause correlation: CPU/GPU utilization, memory, swap, I/O wait, network bandwidth, process counts, and thread counts.
• Record model-run specifics: model name/provider, response size (tokens or bytes), provider latency, and success/failure reasons.

Minimum metric set (instrumented):

• Request/response latency (p50, p90, p95, p99) for: chat completions, tool calls (e.g., image generation), file uploads, and RAG search operations.
• Throughput: requests/sec and concurrent open WebSocket sessions.
• Error rates: HTTP 5xx, provider errors, timeouts.
• Resource metrics: CPU, GPU utilization and memory per process, disk IOPS/latency, and network latency to external model providers.
• Trace spans for cross-service operations (frontend → backend → model runner → vector DB/storage).

Open WebUI includes OpenTelemetry support in the codebase; use that wiring to emit traces and metrics into your observability stack (this is a documented capability in the project README) — instrument any custom extensions similarly [source: repository README].

What to log for post-mortem

• Correlate request IDs across frontend, API, and model provider calls.
• Log provider-level response codes and structured failure events. The project recently added structured provider failure events in v0.10.2, which you should capture and forward to an error-tracking sink [v0.10.2 release notes].

Representative workloads and how to produce them

Representative workloads should reflect the different user paths supported by Open WebUI. At minimum, capture these categories:

• Interactive chats (short and long responses). Expect many short bursts and some long-running streaming responses.
• RAG queries: document search + embedding + rerank flows, including large-result retrievals.
• File and folder ingestion: bulk uploads and folder syncs (v0.10.2 added folder uploads preserving structure).
• Image generation/edit jobs: GPU-heavy jobs, possibly queued and processed asynchronously.
• Background automations and scheduled runs.

Representative workload generation methods (non-exhaustive):

• Use recorded traces (sanitized) and a traffic-replay tool to reproduce request timing and concurrency.
• For chat streaming behavior, ensure your load generator supports long-lived WebSocket connections and partial streamed responses.
• For RAG indexing, run full ingestion jobs with realistic document size distributions and vectorization steps.

Table 1: Representative workload mapping

Workload type	Key resource pressure	Typical bottlenecks to test
Interactive chat (streaming)	CPU, network, WebSocket concurrency	Stream backpressure, per-connection memory, serialization overhead
RAG query (embedding + search)	CPU/GPU for embedding, vector DB latency	Embedding concurrency, vector DB QPS, network hops
Bulk folder ingest	Disk I/O, CPU for extraction/embedding	I/O throughput, document parsing, temporary storage
Image generation	GPU, disk	GPU contention, job queue latency

Profiling, tracing, and hotspot hunting

Start coarse, then refine:

1. Establish a baseline with system metrics and traces. Use OpenTelemetry traces from the app to identify slow spans (Open WebUI documents OpenTelemetry support in the README).
2. Profile the Python process: sampling profilers (e.g., py-spy) to find CPU hot paths; use cProfile for deterministic profiling when safe in staging.
3. For CPU-heavy tasks (embedding, text extraction), capture flamegraphs to find expensive Python/C-extension calls.
4. For async/concurrency issues, inspect event-loop latency and thread pools (asyncio loop metrics, thread pool queue lengths).

Table 2: Profiling tools matrix

Tool	Purpose	When to use	Notes
OpenTelemetry (traces/metrics)	Distributed tracing, high-level latency	Always in staging/prod	Open WebUI supports OpenTelemetry (see repo). Use to correlate cross-service delays
py-spy	Sampling profiler for Python	CPU hotspots without pausing process	Good for production sampling; low overhead
cProfile	Deterministic profiling	Deep function-level analysis in staging	Generates call graphs; heavier than sampling
Flamegraph tooling	Visualize CPU/stack hotspots	Post-collection visualization	Combine with perf/py-spy data
system tools (top, iostat, vmstat)	OS-level resource signals	Baseline and saturation checks	Essential for I/O and memory bottlenecks

Profiling tips for Open WebUI-specific extensions:

• If you add custom plugins (filters, actions, or tools), profile them in isolation and with representative inputs. Plugins run in the main process or worker context depending on your deployment; treat them as untrusted performance surface area.
• For model calls, instrument the call boundary (time spent in HTTP/gRPC client, retries, and streaming decode). The v0.10.2 release introduced provider failure events; ensure these are captured in traces for root-cause analysis.

Caching and state strategies

Caching reduces both latency and provider cost; choose the right granularity and TTL.

Common caches and trade-offs:

• HTTP response cache for static assets (PWA resources) and admin assets.
• Model-response memoization for repeated prompts or for identical system-context requests. Use caution: responses may include personal data; apply policy and encryption.
• Session caching: session state can be stored in Redis to support multi-worker deployments. The README documents Redis-backed session management.
• Embeddings and vector-cache: cache embeddings for frequently-accessed documents to avoid re-embedding.

Table 3: Cache strategies overview

Cache target	Suggested backend	TTL guidance	Risk notes
Static web assets	CDN or nginx cache	long (immutable)	Low risk; standard web caching applies
Session state	Redis	short-to-medium	Required for multi-worker sessions (README notes Redis support)
Model responses	Redis or internal LRU	short, depends on privacy	Might expose private data; TTL + encryption recommended
Embeddings	Local disk or object store with metadata	medium	Recompute when documents change

Security note: cached responses may contain user data. Apply encryption at rest, tighten access controls, and follow your data retention policies.

I/O, storage, and database boundaries

Open WebUI supports multiple persistence and vector options; your choice shapes performance trade-offs. Documented options include SQLite and PostgreSQL for metadata and nine supported vector databases (ChromaDB, PGVector, Qdrant, Milvus, Elasticsearch, OpenSearch, Pinecone, S3Vector, Oracle 23ai) [Open WebUI repository].

Principles:

• Keep small operational metadata (users, settings) in your transactional DB (SQLite for single-node or Postgres for multi-node/HA). The README explicitly documents both as options.
• Put large artifacts (file uploads, vector stores, model caches) on scalable object/storage backends where possible (S3-compatible, GCS, or Azure Blob Storage are supported by the project for artifacts).
• Separate vector DB traffic from transactional DB traffic: vector searches are often I/O and CPU bound and can benefit from tuned deployment of the vector database.

I/O considerations:

• Embedding pipelines create bursts of CPU and network I/O. Use local caching to avoid repeated re-embeddings.
• For on-disk vector indexes or local blob storage, ensure filesystem and disk provisioning match expected throughput (avoid single spinning disk bottlenecks for heavy ingest).

Architectural inference label: The following diagram is an inferred logical request flow based on README features (OpenTelemetry support, Redis-backed sessions, multi-worker hints, vector DB options, and model-provider integrations). Use it as a starting point for your architecture docs, not as a canonical project topology.

flowchart LR
  Browser[User Browser / PWA]
  LB[Load Balancer]
  Frontend[Open WebUI Frontend]
  API[Open WebUI Backend API Workers]
  Redis[(Redis) : sessions/cache]
  DB[(Postgres / SQLite)]
  Storage[(S3 / Blob)]
  VectorDB[(Vector DB)]
  ModelProvider[(Ollama / OpenAI / Other)]
  Observability[(OpenTelemetry)
  ]

  Browser -->|HTTPS / WebSocket| LB --> Frontend --> API
  API -->|session| Redis
  API -->|meta| DB
  API -->|artifacts| Storage
  API -->|search/embeddings| VectorDB
  API -->|model calls| ModelProvider
  API --> Observability
  ModelProvider --> Observability
  VectorDB --> Observability

  style Observability fill:#f9f,stroke:#333,stroke-width:1px

Concurrency, scaling, and deployment patterns

Key knobs:

• Worker count and type: separate long-running streaming workers from short request workers where possible.
• WebSocket capacity: test maximum concurrent active WebSocket connections per node and plan for horizontal scaling behind a load balancer.
• Session sharing: use Redis-backed sessions (documented in README) for multi-node setups to avoid sticky sessions.
• GPU vs CPU separation: co-locate GPU-intensive image-generation or local model inference on dedicated GPU nodes; keep API/ingest nodes CPU-optimized.

Scaling patterns to try:

• Vertical scaling for memory-heavy components (vector DB, embedding workers) then horizontal scaling for stateless API workers behind LB.
• Autoscale worker types separately: for example, scale embedding workers during ingest windows but keep steady web workers.

Operational checks:

• Validate graceful degradation for downstream model provider failures — v0.10.2 added structured provider failure events to help with this.
• Ensure health checks map to meaningful internal states: worker queue depth, DB connectivity, and model provider reachability.

CI regression checks and benchmarking patterns to avoid

CI checks you should add (examples to implement in your pipeline):

• End-to-end latency smoke test: run a small chat completion and assert response < acceptable budget in staging.
• Streaming test: open a WebSocket, request a streaming response, and verify partial-chunk arrival semantics.
• RAG ingest verification: run a small document index job and verify embedding cache semantics and search correctness.
• Resource regression: run a short synthetic load and record p95/p99 latency and peak memory; fail if resource consumption increased beyond an expected delta.
• Integration test for provider failures: simulate provider errors and verify structured provider failure events are emitted and the UI surfaces safe errors.

Table 4: Suggested CI checks and pass criteria (example categories)

Check	Target	Pass criteria (example)
E2E chat smoke	Functional latency	Chat responds and returns 200; response not empty
Streaming behavior	Partial payloads	At least one chunk arrives before end-of-stream
Embedding reuse	Cache hit	Same document embedding lookup returns cached id
DB migration sanity	Upgrade path	Migrations apply without crash (test on sample DB)

Misleading benchmark patterns to avoid:

• Microbenchmarks that only measure token decode time or a single provider path. These ignore orchestration, DB, and I/O overhead.
• Warm-only benchmarks that don't model cold start behavior for models or worker containers.
• Benchmarks that conflate single-model throughput with end-to-end user experience (UI latency and streaming semantics matter).

Decision checklist

• Deployment DB: SQLite (single-node, low-concurrency) or PostgreSQL (multi-node, HA)?
• Vector DB: local vs managed vs cloud (which of the 9 supported vector backends fits your latency/scale)?
• Session strategy: in-process sessions or Redis-backed shared sessions?
• Model hosting: local Ollama or remote OpenAI-compatible providers; how to route model traffic and budget retries?
• GPU placement: dedicated GPU nodes for model inference or shared GPU with gpus isolation?
• Observability: OpenTelemetry collectors and span retention policy.

Action checklist

• Instrument Open WebUI traces and metrics into your observability stack using OpenTelemetry hooks provided by the project.
• Capture representative traffic samples and construct replay scenarios that include streaming, RAG flows, and heavy ingest.
• Add lightweight sampling profiling (py-spy) in production and deeper profiling in staging (cProfile/flamegraphs) for hotspots found.
• Configure Redis-backed sessions for multi-worker deployments and verify session failover behavior.
• Choose storage and vector DB backends aligned to your ingest and query patterns; test large-index search latency.
• Add CI smoke tests for streaming, RAG, and provider-failure handling; include resource regression checks.

Evidence, assumptions, and limitations

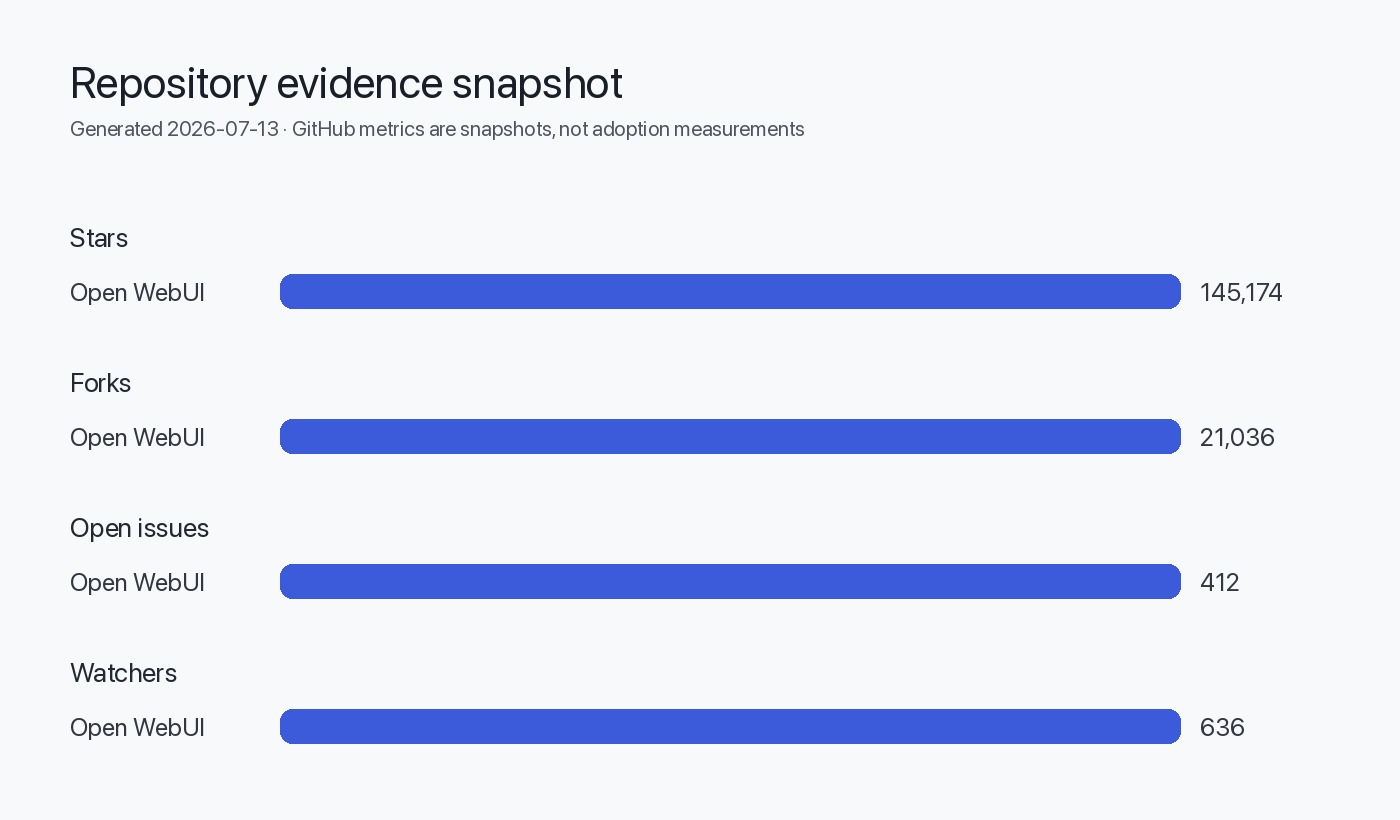

• Open WebUI canonical repository: https://github.com/open-webui/open-webui
• Open WebUI v0.10.2 release notes: https://github.com/open-webui/open-webui/releases/tag/v0.10.2

• The guide assumes you are running a mainstream Open WebUI release and that the documented features (OpenTelemetry support, Redis-backed sessions, vector DB options) are present in your deployed version. These items are documented in the project's README and release notes.

• Architectural diagram and deployment recommendations are inferred from README statements about Redis-backed sessions, multiple vector DB support, model providers, and OpenTelemetry support. These are labelled as inferences and not authoritative architecture diagrams.

Limitations:

• This checklist does not provide numeric capacity planning numbers because doing so requires direct telemetry from your deployment, chosen model sizes/providers, and workload characteristics.
• The repo and release notes are the evidence baseline. Internal or enterprise distributions, forks, or custom plugins will change performance characteristics and require re-validation.

Data retrieval/generation date: 2026-07-13 (the repository and release information cited above were current as of this date).

Sources

• Open WebUI canonical repository: https://github.com/open-webui/open-webui
• Open WebUI latest GitHub release (v0.10.2): https://github.com/open-webui/open-webui/releases/tag/v0.10.2

FAQ

Which metrics are most critical for Open WebUI performance?

Capture end-to-end latency quantiles (p50/p95/p99) for chat completions, throughput (requests/sec and concurrent WebSocket sessions), provider latencies, resource metrics (CPU/GPU/memory/disk/IOPS), and structured provider failure events for diagnostics.

Should I use SQLite or PostgreSQL for production?

Use SQLite for single-node, low-concurrency setups. For multi-node, high-concurrency, or HA deployments prefer PostgreSQL; the repository documents both options.

How can I avoid misleading benchmark results?

Test end-to-end scenarios that include streaming, RAG flows, and large-file ingest. Include both cold and warm start measurements and avoid microbenchmarks that isolate only model inference.

Does Open WebUI support tracing?

Yes. Open WebUI documents OpenTelemetry support; route traces into your observability backend to correlate frontend, API, provider, and vector DB spans.

What vector databases does Open WebUI support?

Open WebUI supports ChromaDB, PGVector, Qdrant, Milvus, Elasticsearch, OpenSearch, Pinecone, S3Vector, and Oracle 23ai. Choose based on your latency, scale, and operational needs.

How should session state be managed across multiple nodes?

Use Redis-backed session storage for multi-worker, multi-node deployments. The project README documents Redis-backed session management to enable horizontal scaling.

How do I validate provider-failure handling?

Simulate provider failures in staging and verify that structured provider failure events are emitted and the UI surfaces safe error messages. The v0.10.2 release added provider failure events to aid this validation.
